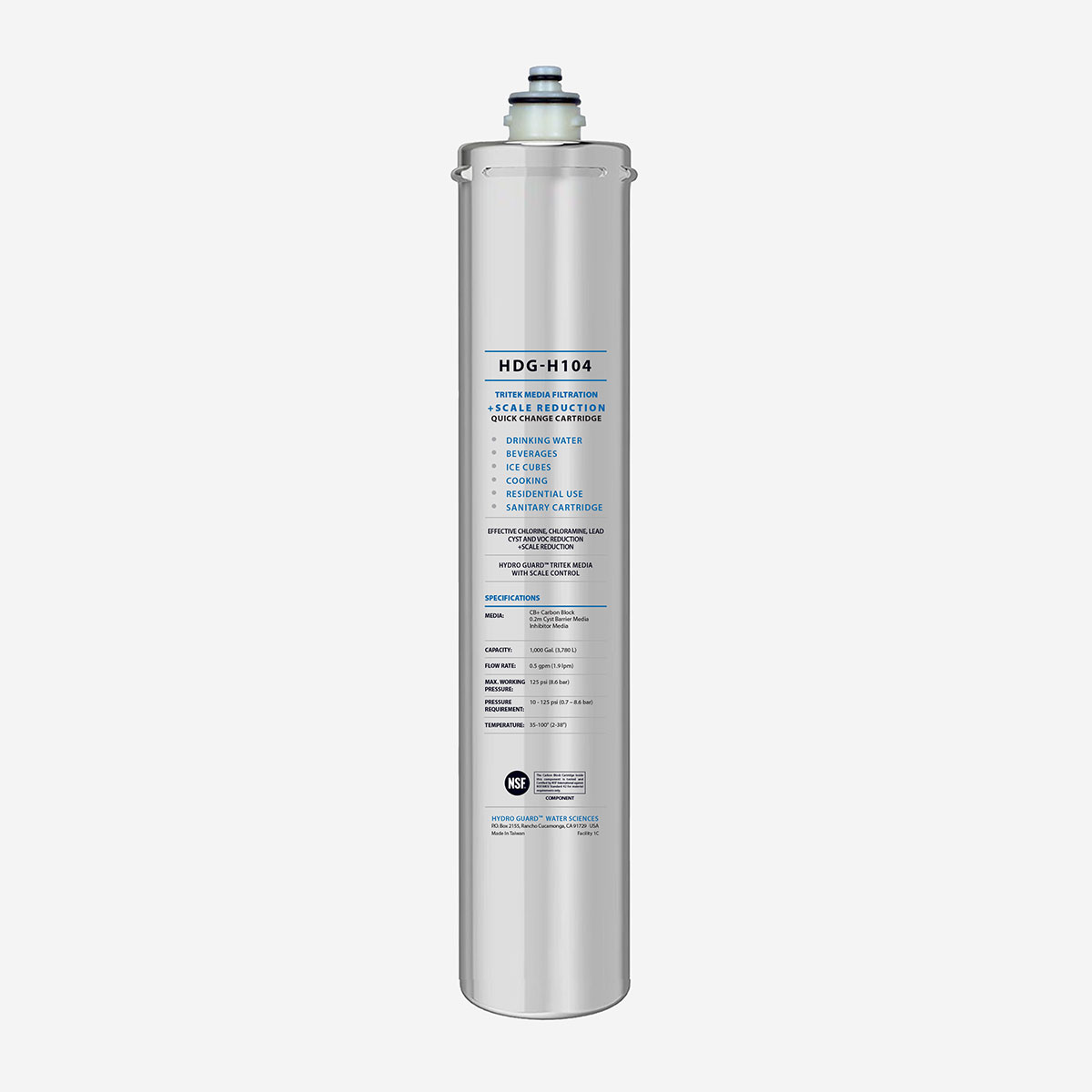

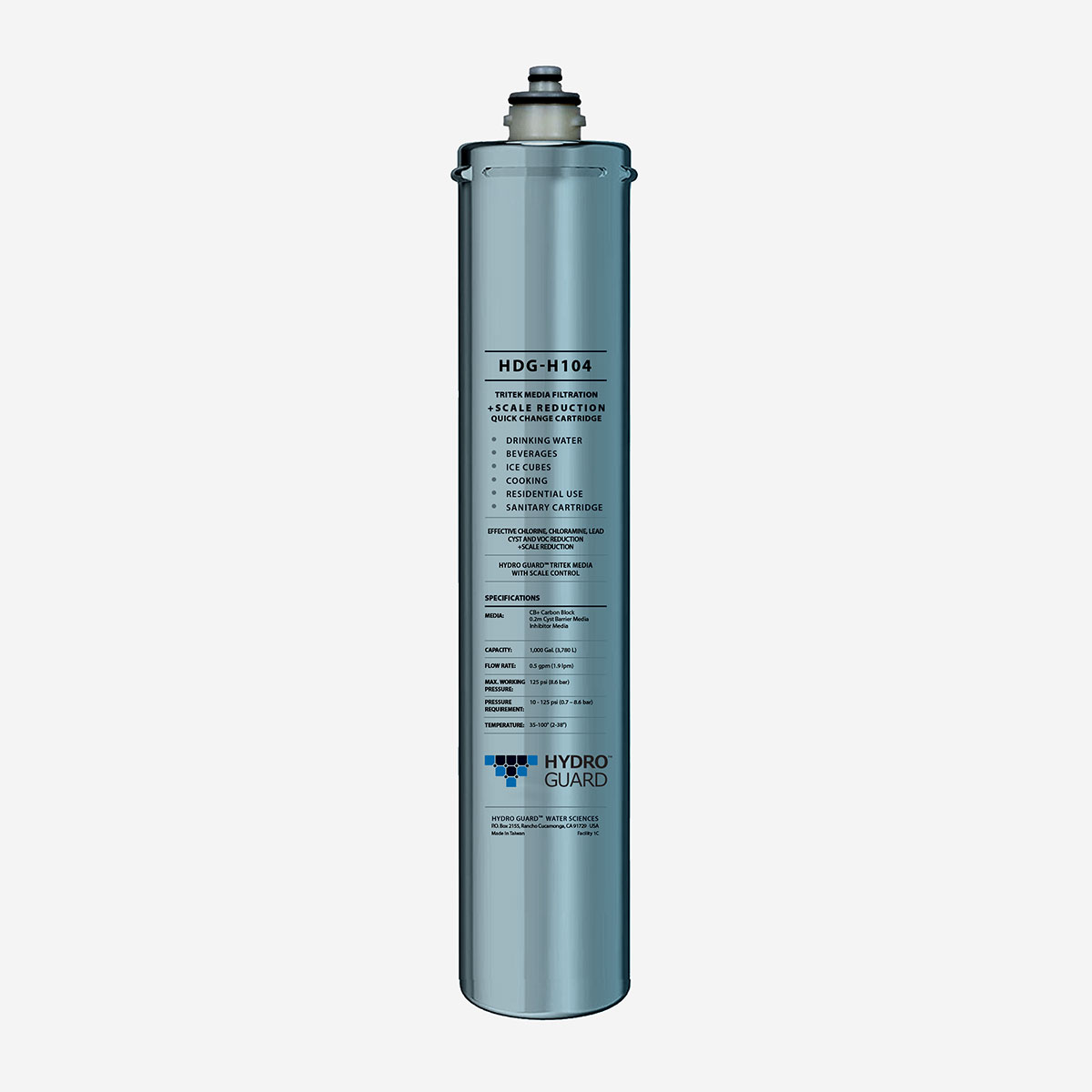

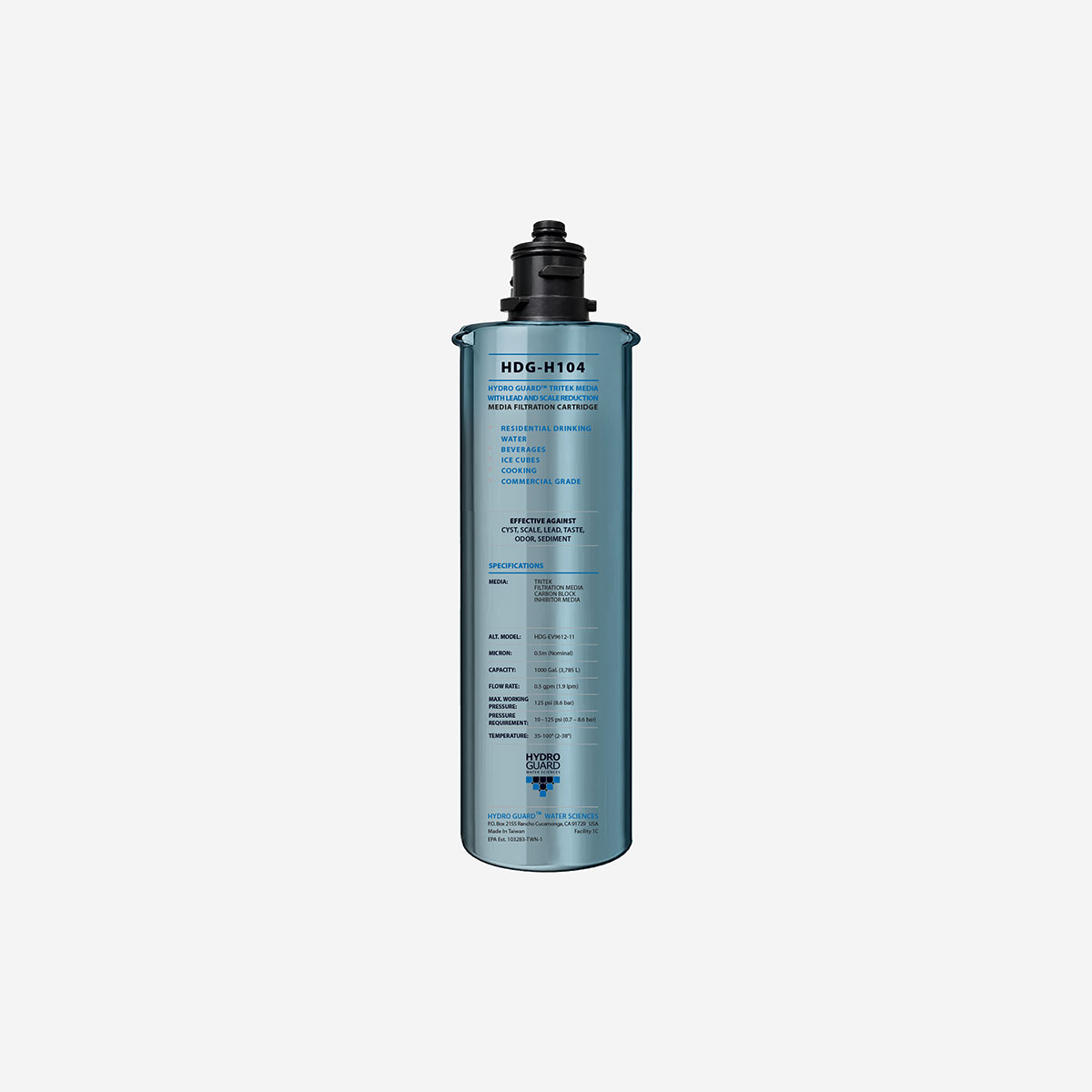

Hydro Guard™ – HDG-H104
TriTek Filtration Media with Cyst Barrier Media
Lead, Cyst & Scale Reduction
Quick Change Cartridge
Hydro Guard Water Sciences™ model HDG-H104 sanitary filter cartridges utilize TriTek Filtration Media to effectively address contaminants of health concern. The HDG-H104 cartridge reduces contaminants such as Lead and Cysts while addressing the growth of bacteria on the filter media and reducing scale buildup on ice maker lines and fixtures.
Hydro GuardTM HDG-H104 are simple, quick and clean. The internal filter parts are never exposed to handling or contamination and offer true sanitary filter cartridge benefits for ease of use and optimal performance. The HDG-H104 (also part number HDG-EV9612-11) cartridge reduces Cysts, VOC’s, scale, chlorine taste and odor and other offensive contaminants that can adversely affect the taste of beverages. The TriTek
Filtration Media for enhanced performance provides superior chlorine taste and odor reduction.
The Hydro GuardTM HDG-H104 sanitary filter cartridges micro-filter dirt and particles as small as 0.5 micron in size by mechanical filtration technology and are tested to NSF/ANSI 53 standards to reduce cysts such as Cryptosporidium and Giardia.
Hydro GuardTM HDG-H104 sanitary filter cartridges drastically improve the taste of ice, coffee and other beverages. They are ideal for commercial use, aid to keep ice machines running at a more efficient capacity and gives users the peace of mind they expect from a sanitary cartridge.
Applications
- ✔ Residential Drinking Water
- ✔ Beverages
- ✔ Ive Cubes
- ✔ Cooking
- ✔ Commercial Grade
- ✔ Sanitary Filter Cartridge
Recommended Use
- ✔ Residential Use
- ✔ Coffee Brewers & Single-Serve Systems
- ✔ Ice Machines & Ice Makers
- ✔ Drinking Water & POU Dispensers
Industries
- ✔ Homes
- ✔ Apartments
- ✔ RV's & Mobile Homes
Specifications
Model: HDG-H104
Alt. Model: HDG-EV9612-11
Compatibility: Everpure H-104 EV9612-11
Media: TriTek Filtration MediaCarbon Block Inhibitor Media
Micron: 0.5 micron (nominal)
Capacity: 1,000 Gallons (3,780 L)
Temperature: 35 °F – 100 °F (2 °C - 38 °C)
Max. Working Pressure: 125 psi (8.6 bar)
Pressure Requirements: 10 - 125 psi (0.7 – 8.6 bar)
Max. Service Flow Rate: 0.5 gpm (1.9 lpm)
Description
Hydro Guard™ – HDG-4C Specifications
| Dimension | Inch | Centimeters |
|---|---|---|
| Height | 14.5" | 36.8 |
| Diameter | 3.25" | 8.2 |
| Inlet/Outlet Connection | EV | EV |
Materials of Construction
| Material | |
|---|---|
| Endcap | Polypropylene |
| Body | Polypropylene |
| Gasket | Buna-N |
Cartridge Performance
| Contaminant / Concern | Reduces / Removes |
|---|---|
| Chlorine Taste & Odor | Yes |
| Sediment & Particulate | Yes |
| Lead | Yes |
| Cysts (Cryptosporidium, Giardia) | Yes |
| Scale / Hardness Inhibition | Yes |
Certification & Compliance
| Rating | Certified / Compliance |
|---|---|
| NSF/ANSI 53 | Complies With NSF/ANSI 53 |
| EPA Registration No: | EPA Est. 103283-TWN-1 |
Compatibility
| Compatibility | |
|---|---|
| Compatible Head/Housing: | HDG-EV, Everpure |
| Cartridge Type: | HDG EV Quick Change |
| Connection Type & Size: | 3/8” FNPT |
| Compatible Systems: | HDG-EV, Everpure |
Maintenance
| Maintenance | |
|---|---|
| Replacement Interval (Volume): | 1,000 Gallons (3,780 L) |
| Replacement Interval (Time): | 6-12 Months |
| Flush Instructions: | Flush for 5 minutes |
| Sanitization: | None Required |
WARNING: Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.
Disclaimer: Hydro Guard and Hydronix Water Technology are not affiliated, associated, authorized, endorsed by, or in any way officially connected with the Everpure brand, Pentair Filtration Solutions, or any of its companies. All product and company names are trademarks™ or registered trademarks® of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
