Hydro Guard™ – U4000 Systems

In Stock

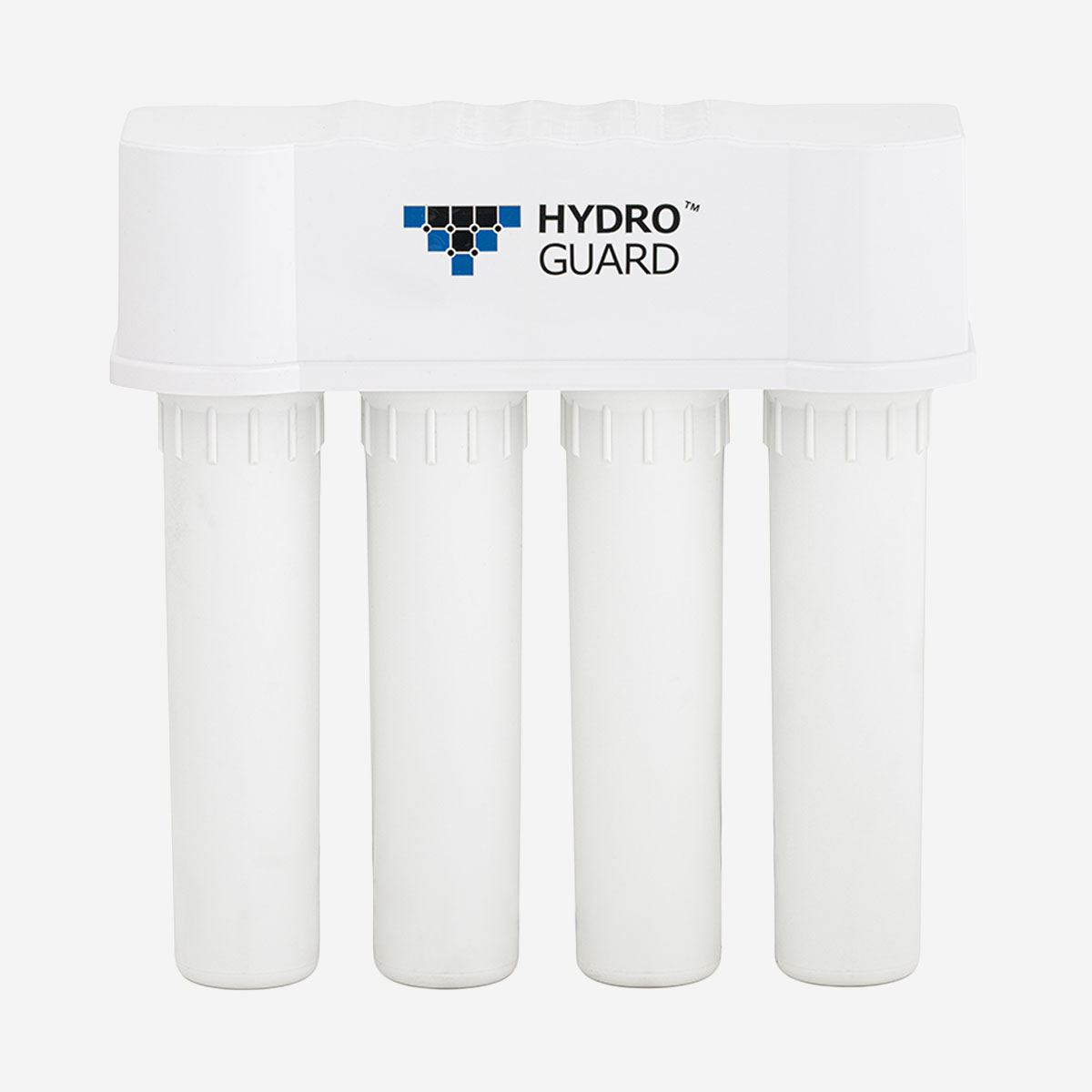

Under Counter Water Filtration System

The Hydro Guard™ U4000 Under Counter Water Filtration System is the ultimate choice for families and businesses that want premium-quality drinking water with maximum protection. With four advanced multi-stage filtration cartridges and a generous 1,200-gallon capacity, the U4000 is engineered to tackle a wide range of water quality concerns—including chlorine, VOCs, pesticides, herbicides, limescale, and unwanted taste and odor—delivering consistently cleaner, clearer, better-tasting water right from your tap. Designed to safeguard health and enhance flavor, this system even includes an optional alkaline stage (U4000-UF-ALK) that balances pH and boosts antioxidant potential for a refreshing, health-conscious drinking experience.

Every U4000 model is built with convenience and performance in mind. Microban® antimicrobial technology is integrated into the carbon filters to help inhibit bacterial growth that can cause odors or reduce efficiency, keeping the system running at peak performance longer. The system installs neatly under your counter, operates quietly, and requires minimal maintenance—all while giving you bottled-water quality in every glass, cup of coffee, or prepared meal. Hydro Guard™ delivers peace of mind with every drop, providing a premium water solution that’s as reliable as it is refreshing.

Product Benefits

✔ Excellent Contaminant Reduction
✔ Superior Taste, Odor and Chlorine Reduction
✔ VOC, Pesticide, Herbicide Reduction
✔ 1,200 Gallon Capacity
✔ End of Life Indicator (ELI - Filter Change Indicator)
✔ Carbon Block Certified by NSF®
✔ Cyst Removal**
✔ Quick & Easy Install
✔ Microban® Antimicrobial Technology

Operational Data

Rated Capacity: 1,200 gallons (3028.33 L)

Micron Rating: 0.01µ – 0.5µ

Replacement Filter: HDG-CER, HDG-UF, HDG-MCB, HDG-CB5P

Flow Rate: .75 GPM (2.84 LPM) @ 60psi.

Maximum Working Pressure: 100 psig (689.5 kPa)

Minimum Working Pressure: 30 psig (206.8 kPa)

Maximum Operating Temperature: 100 °F (38 °C)

Minimum Operating Temperature: 34ºF (1 °C)

Description

Hydro Guard™ Total Care Water Systems are high performance water filtration systems designed to substantially improve the quality of your drinking water. They provide great tasting water while producing water that is cleaner, healthier and safer. Hydro Guard effectively transforms your water from questionable to premiere quality in a matter of seconds!

Hydro Guard™ Total Care Water Filtration Systems are designed to address a broad range of issues relating to your drinking water like taste, odor, chlorine and most importantly, items of health concern that are paramount to your family’s health and wellbeing.

The Hydro Guard™ U4000 incorporates four multistage water filtration cartridges designed to provide you with 1,200 gallons of premium quality drinking water!

The Hydro Guard™ U4000 also incorporates throughout the solid carbon filter Microban® technology. Microban® antimicrobial technology inhibits the growth of bacteria that can cause odors and fouling of the filter surface, so your filter keeps working at peak performance. On an unprotected surface, bacteria can double in number every 20 minutes causing premature fouling of the water filter. Microban® antimicrobial product protection works continuously to inhibit the growth of bacteria that can adversely affect filter performance.

Microban® Carbon Block

CARTRIDGE 1 – HDG-SED5

The HDG-SED5 prefilter is a specially manufactured high performance sediment filter designed to give you high dirt holding capacity, reduce sediment and rust particles and extend the life of additional filters. Its micro-fine web design traps particles and helps keep other filters in the filtration system working at optimal performance.

CARTRIDGE 2 – HDG-MCB

Stage 1 –

Hydro Guard’s radial flow filtration allows water to enter the cartridge through the radius of the filter. This allows the outer layer to trap and retain additional particulate matter. The FDA CFR 21 compliant fine web polypropylene fibers do not impart color, odor or chemicals into the water and are an ideal pre-filtration media.

Stage 2 –

Water passes through the NSF Certified Coconut Shell Solid Carbon Block filter to reduce items of health concern. The 0.5 micron carbon block pores micro-strains the water to reduce (through mechanical filtration) substances in your water that are 0.5 micron in size or larger. The 0.5 micron pores also aid to increase the systems adsorptive properties. This allows water to have a longer contact time with the carbon wall and permits the efficient reduction of Volatile Organic Compounds (VOC’s – Organic Chemicals), PCB, Pesticides, Herbcides, Chloroform and other chlorination by-products.

CARTRIDGE 3 – HDG-SIL

The HexoSoft Media Filter cartridge is designed to provide crystal clear drinking water and aids in the prevention of limescale growth at the faucet. It also aids to improve taste and odor in your drinking water which results in better tasting, better brewed coffee; better tasting tea; and better tasting mixed beverages.

CARTRIDGE 4 – HDG-CB5P

The final stage is the exclusive Hydro Guard™ HDG-CB5P filter which has been specially designed with premium grade Coconut shell carbon as a final Polishing cartridge to improve taste and render a pleasant bottled water like taste to your drinking water.

Ultrafiltration System

CARTRIDGE 1 – HDG-SED5

The HDG-SED5 prefilter is a specially manufactured high performance sediment filter designed to offer high dirt holding capacity, reduce sediment and rust particles and extend the life of additional filters. Through Its micro-fine web design it traps more particles and helps keep other filters in the filtration system working at optimal performance.

CARTRIDGE 2 – HDG-UF

Stage 1 –

Hydro Guard’s radial flow filtration allows water to enter the cartridge through the radius of the filter allowing the outer layer to trap and retain additional dirt, rust and sediment particles. The FDA CFR 21 compliant fine web polypropylene fibers do not impart color, odor or chemicals into the water and are the ideal pre-filtration media.

Stage 2 –

After water passes through the outer layer it then enters and passes through the NSF Certified Coconut Shell Solid Carbon Block filter to reduce items of health concern. The carbon block micro-strains the water through its 0.5 micron pores to trap micro-organisms and cysts. The carbon blocks chemisorptive process also allows it to effectively reduces Volatile Organic Compounds (VOC’s – Organic Chemicals), PCB’s, Certain Heavy metals such as Lead, Pesticides, Herbicides, Chloroform and other chlorination by-products.

Step 3 –

In the final filtration process water passes through an array of sophisticated 0.01 – 0.1u Ultra Filtration (UF) hollow fibers for the effective removal of Bacteria, Viruses and Cysts. Suspended particles and materials of high molecular weight are unable to pass through the 0.01- 0.1 micron UF ultrafiltration membrane, allowing only fresh clean water and dissolved minerals to pass through.

CARTRIDGE 3 – HDG-SIL

In this stage water passes through the Hydro Guard™ HexoSoft media Filter which is designed to provide crystal clear drinking water and aid in the prevention of limescale growth at the faucet. This aids to improve taste and odor in your drinking water which results in better tasting, better brewed coffee; better tasting tea; and better tasting mixed beverages.

CARTRIDGE 4 – HDG-CB5P

The final stage is the exclusive Hydro Guard HDG-CB5P filter which has been specially designed with premium Coconut shell carbon as a final Polishing cartridge to improve taste and render a pleasant bottled water like taste to your drinking water.

Microceramic Filtration

CARTRIDGE 1 – HDG-SED5

CARTRIDGE 2 – HDG-MCB

Stage 1 –

Hydro Guard’s radial flow filtration allows water to enter the cartridge through the radius of the filter. This allows the Sub-Micron Ceramic outer layer to trap and retain larger particles and ensures key microbial filtration.

Stage 2 –

After water passes through the Microceramic outer layer it then enters and passes through the NSF Certified Coconut Shell Solid Carbon Block filter to reduce additional items of health concern. The 0.5 micron carbon block pores micro-strains the water and through the carbons Chemisorptive process it effectively reduces Volatile Organic Compounds (VOC’s – Organic Chemicals), PCB, Pesticides, Herbicides, Chloroform and other chlorination by-products.

CARTRIDGE 3 – HDG-SIL

The HexoSoft Filter cartridge is designed to provide crystal clear drinking water and aid in the prevention of limescale growth at the faucet. It also aids to improve taste and odor in your drinking water which results in better tasting, better brewed coffee; better tasting tea; and better tasting mixed beverages.

CARTRIDGE 4 – HDG-CB5P

The final stage is the exclusive Hydro Guard™ HDG-CB5P filter which has been specially designed with premium Coconut shell carbon as a final Polishing cartridge to improve taste and render a pleasant bottled water like taste to your drinking water.

Ultrafiltration System - Alkaline

CARTRIDGE 1 – HDG-SED5

CARTRIDGE 2 – HDG-MCB

CARTRIDGE 3 – HDG-UF

Stage 1 –

Stage 2 –

Stage 3 –

CARTRIDGE 4 – HDG-ALK

The final stage is the exclusive Hydro Guard HDG-ALK cartridge which has been exclusively designed to produce perfectly pH balanced water. By way of its special media, the HDG-ALK increases the antioxidant level (negative ORP) in your water to aid in neutralizing free radicals end DNA damage.

End Of Life Indicator (ELI)

The Hydro Guard” End of Life Indicator (ELI) is another way Hydro Guard™ helps you safeguard your drinking water. The ELl measures time and informs you when it’s time to change your filter. This is an added convenience which takes away the guess work and helps ensure your drinking water system is working at optimal performance. Two LED lights update you on the systems operation. The YELLOW LED indicates less than 10% of filter capacity remains (it’s time to order a replacement cartridge), and the RED LED indicates the filter capacity has been reached, and it’s time to install new cartridge.

Peace of mind made easy!
