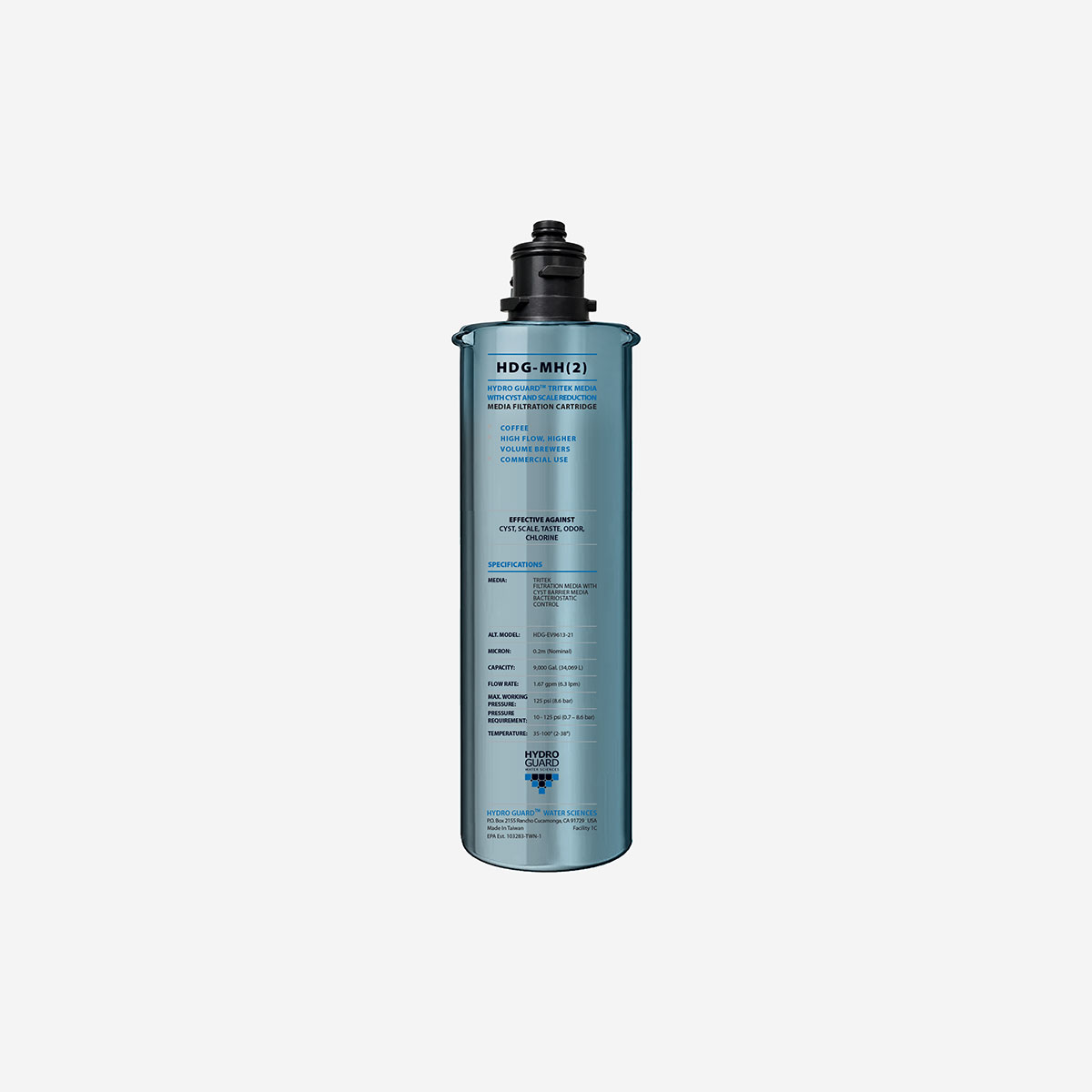

Hydro Guard™ – HDG-MH(2)
TriTek Filtration Media
Bacteriostatic Barrier, Cyst & Scale Reduction
Quick Change Cartridge
Hydro Guard Water Sciences™ model HDG-MH(2) sanitary filter cartridges utilize TriTek Filtration Media with Cyst Barrier Media to effectively address contaminants of health concern. The HDG-MH(2) cartridge reduces contaminants such as Asbestos and Cysts, they inhibit the growth of bacteria on the filter media and reduce the scale buildup on coffee machines, brewers and other equipment.
Hydro GuardTM HDG-MH(2) are simple, quick and clean. The internal filter parts are never exposed to handling or contamination and offer true sanitary filter cartridge benefits for ease of use and optimal performance. The HDG-MH(2) (also part number HDG-EV9613-21) cartridge reduces cysts, Asbestos, scale, chlorine taste and odor and other offensive contaminants that can adversely affect the taste of water. The TriTek Filtration Media incorporates Cyst Barrier Media for enhanced bacteriostatic performance and provides superior chlorine taste and odor reduction.
The Hydro GuardTM HDG-MH(2) sanitary filter cartridges micro-filter dirt and particles as small as 0.2 micron in size by mechanical filtration technology and are tested to NSF/ANSI 53 standards to reduce cysts such as Cryptosporidium and Giardia.
Hydro GuardTM HDG-MH(2) sanitary filter cartridges drastically improve the taste of ice, coffee and other beverages. They are ideal for commercial use, aid to keep equipment running at a more efficient capacity and gives users the peace of mind they expect from a sanitary cartridge.
Applications
- ✔ Coffee
- ✔ High Flow, Higher Volume Brewers
- ✔ Commercial Use
- ✔ Sanitary Filter Cartridge
Recommended Use
- ✔ Office Coffee Service (OCS)
- ✔ High Flow, High Volume Brewers
Industries
- ✔ Office Coffee Service (OCS)
- ✔ Hospitality (Hotels, Resorts, Lodging)
- ✔ Restaurant & Food Service
Specifications
Model: HDG-MH(2)
Alt. Model: HDG-EV9613-21
Compatibility: Everpure MH2 EV9613-21
Media: TriTek Filtration Media with Cyst Barrier MediaBacteriostatic Control Scale Reduction
Micron: 0.2 micron (nominal)
Capacity: 9,000 Gallons (34,068 L)
Temperature: 35 °F – 100 °F (2 °C - 38 °C)
Max. Working Pressure: 125 psi (8.6 bar)
Pressure Requirements: 10 - 125 psi (0.7 – 8.6 bar)
Max. Service Flow Rate: 1.67 gpm (6.3 lpm)
Description
The Hydro Guard™ HDG-MH(2) utilizes advanced TriTek Filtration Media with Cyst Barrier Media to reduce chlorine taste and odor, cysts, asbestos, scale, and other contaminants that can affect water quality and beverage flavor. Its high-performance 0.2-micron filtration technology helps deliver cleaner, better-tasting water while protecting equipment from scale-related issues.
Designed for coffee brewers, beverage equipment, and commercial food service applications, the HDG-MH(2) helps improve the taste of coffee, ice, and other beverages while supporting efficient equipment operation. Independently tested to NSF/ANSI 53 standards for cyst reduction, the sanitary quick-change design provides reliable performance and peace of mind in demanding commercial environments.
Hydro Guard™ – HDG-4C Specifications
| Dimension | Inch | Centimeters |
|---|---|---|
| Height | 14.5" | 36.8 |
| Diameter | 3.25" | 8.2 |
| Inlet/Outlet Connection | EV | EV |
Materials of Construction
| Material | |
|---|---|
| Endcap | Polypropylene |
| Body | Polypropylene |
| Gasket | Buna-N |
Cartridge Performance
| Contaminant / Concern | Reduces / Removes |
|---|---|
| Chlorine Taste & Odor | Yes |
| Sediment & Particulate | Yes |
| Cysts (Cryptosporidium, Giardia) | Yes |
| Scale / Hardness Inhibition | Yes |
Certification & Compliance
| Rating | Certified / Compliance |
|---|---|
| NSF/ANSI 42 | Complies With NSF/ANSI 42 |
| NSF/ANSI 53 | Complies With NSF/ANSI 53 |
| EPA Registration No: | EPA Est. 103283-TWN-1 |
Compatibility
| Compatibility | |
|---|---|
| Compatible Head/Housing: | HDG-EV, Everpure |
| Cartridge Type: | HDG EV Quick Change |
| Connection Type & Size: | 3/8” FNPT |
| Compatible Systems: | HDG-EV, Everpure |
Maintenance
| Maintenance | |
|---|---|
| Replacement Interval (Volume): | 9,000 Gallons (34,068 L) |
| Replacement Interval (Time): | 6-12 Months |
| Flush Instructions: | Flush for 5 minutes |
| Sanitization: | None Required |
WARNING: Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.
Disclaimer: Hydro Guard and Hydronix Water Technology are not affiliated, associated, authorized, endorsed by, or in any way officially connected with the Everpure brand, Pentair Filtration Solutions, or any of its companies. All product and company names are trademarks™ or registered trademarks® of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
