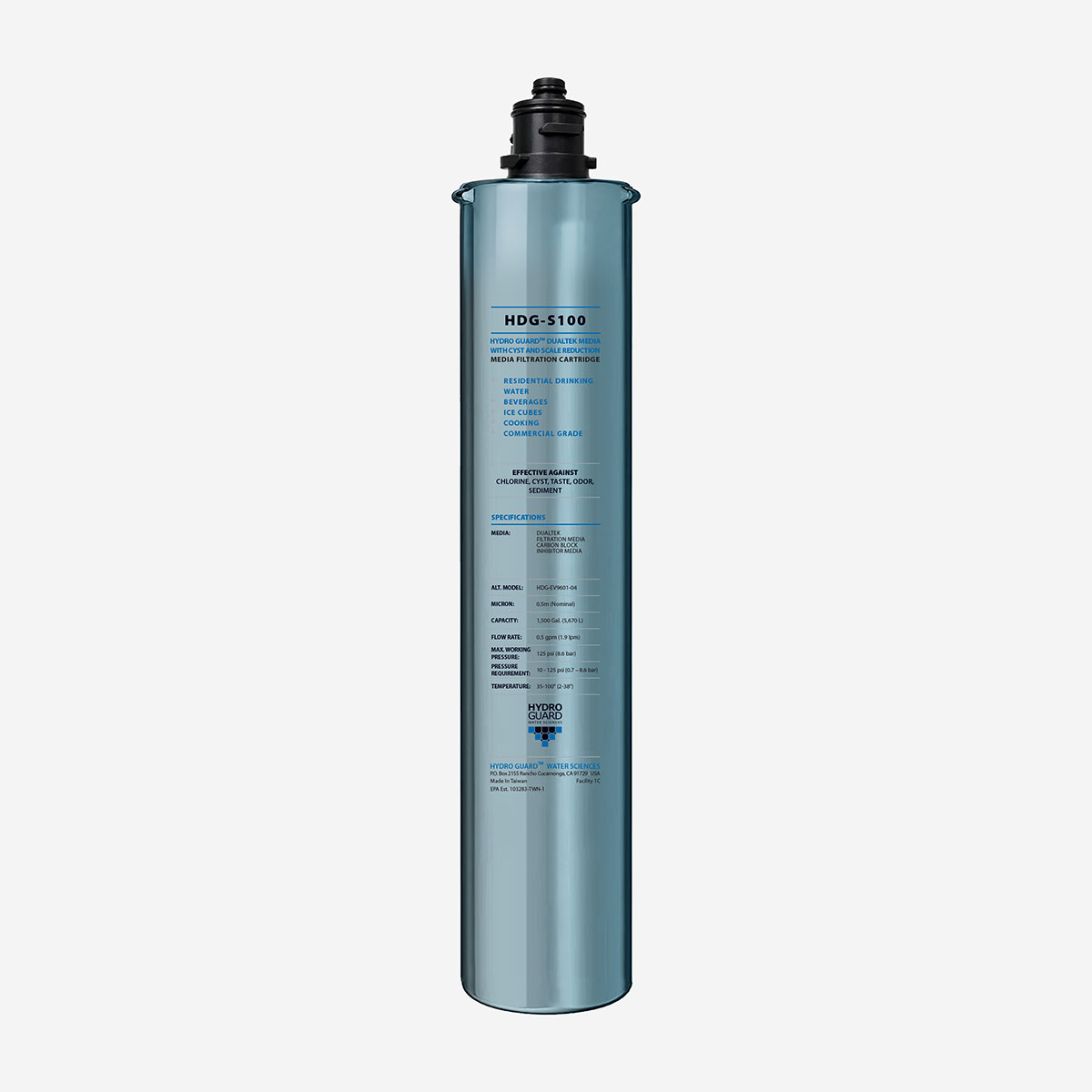

Hydro Guard™ – HDG-S100
DualTek Filtration Media with Carbon Block,
Bacteriostatic, Cyst Barrier Media
Quick Change Cartridge
Hydro Guard Water Sciences™ model HDG-S100 sanitary filter cartridges utilize DualTek Bacteriostatic Filtration Media with Cyst Barrier Media to effectively address contaminants of health concern. The HDG-S100 cartridge reduces contaminants such as Cysts while inhibiting the growth of bacteria on the filter media.
Hydro GuardTM HDG-S100 are simple, quick and clean. The internal filter parts are never exposed to handling or contamination and offer true sanitary filter cartridge benefits for ease of use and optimal performance. The HDG-S100 (also part number HDG-EV9601-04) cartridge reduces Cysts, dirt, cloudiness, chlorine taste and odor and other offensive contaminants that can adversely affect the taste of beverages. The DualTek Filtration Media incorporates Cyst Barrier Media for enhanced bacteriostatic performance and provides superior chlorine taste and odor reduction.
The Hydro GuardTM HDG-S100 cartridges micro-filter dirt and particles as small as 0.5 micron in size by mechanical filtration technology and are tested to NSF/ANSI 53 standards to reduce cysts such as Cryptosporidium and Giardia.
Hydro GuardTM HDG-S100 filter cartridges drastically improve the taste of ice, coffee and other beverages. They are ideal for residential use, and gives users the peace of mind they expect from a sanitary cartridge.
Applications
- ✔ Residential Drinking Water
- ✔ Beverages
- ✔ Ice Cubes
- ✔ Cooking
- ✔ Commercial Grade
- ✔ Sanitary Filter Cartridges
Recommended Use
- ✔ Cooking
- ✔ Ice Machines & Ice Makers
- ✔ Drinking Water & POU Dispensers
Industries
- ✔ Homes
- ✔ Apartments
- ✔ RV's & Mobile Homes
Specifications
Model: HDG-S100
Alt. Model: HDG-EV9601-04
Compatibility: Everpure S100 EV9601-04
Media: DualTek Filtration MediaCarbon Block Inhibitor Media
Micron: 0.5 micron (nominal)
Capacity: 1,500 Gallons (5,670 L)
Temperature: 35 °F – 100 °F (2 °C - 38 °C)
Max. Working Pressure: 125 psi (8.6 bar)
Pressure Requirements: 10 - 125 psi (0.7 – 8.6 bar)
Max. Service Flow Rate: 0.5 gpm (1.9 lpm)
Description
The Hydro Guard™ HDG-S100 utilizes advanced DualTek Bacteriostatic Filtration Media with Cyst Barrier Media to reduce chlorine taste and odor, cysts, dirt, cloudiness, and other contaminants that can affect water quality. Its high-performance 0.5-micron filtration technology helps deliver cleaner, clearer water while inhibiting the growth of bacteria on the filter media.
Designed for residential drinking water, coffee, and ice applications, the HDG-S100 is tested to NSF/ANSI 53 standards for cyst reduction and helps improve the taste and clarity of water throughout the home. The sanitary quick-change design provides dependable filtration performance and the peace of mind homeowners expect from a premium water filtration system.
Hydro Guard™ – HDG-S100 Specifications
| Dimension | Inch | Centimeters |
|---|---|---|
| Height | 20.75" | 52.7 |
| Diameter | 3.25" | 8.2 |
| Inlet/Outlet Connection | EV | EV |
Materials of Construction
| Material | |
|---|---|
| Endcap | Polypropylene |
| Body | Polypropylene |
| Gasket | Buna-N |
Cartridge Performance
| Contaminant / Concern | Reduces / Removes |
|---|---|
| Chlorine Taste & Odor | Yes |
| Sediment & Particulate | Yes |
| Cysts (Cryptosporidium, Giardia) | Yes |
Certification & Compliance
| Rating | Certified / Compliance |
|---|---|
| NSF/ANSI 42 | Complies With NSF/ANSI 42 |
| NSF/ANSI 53 | Complies With NSF/ANSI 53 |
| EPA Registration No: | EPA Est. 103283-TWN-1 |
Compatibility
| Compatibility | |
|---|---|
| Compatible Head/Housing: | HDG-EV, Everpure |
| Cartridge Type: | HDG EV Quick Change |
| Connection Type & Size: | 3/8” FNPT |
| Compatible Systems: | HDG-EV, Everpure |
Maintenance
| Maintenance | |
|---|---|
| Replacement Interval (Volume): | 1,500 Gallons (5,670 L) |
| Replacement Interval (Time): | 6-12 Months |
| Flush Instructions: | Flush for 5 minutes |
| Sanitization: | None Required |
WARNING: Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.
Disclaimer: Hydro Guard and Hydronix Water Technology are not affiliated, associated, authorized, endorsed by, or in any way officially connected with the Everpure brand, Pentair Filtration Solutions, or any of its companies. All product and company names are trademarks™ or registered trademarks® of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
