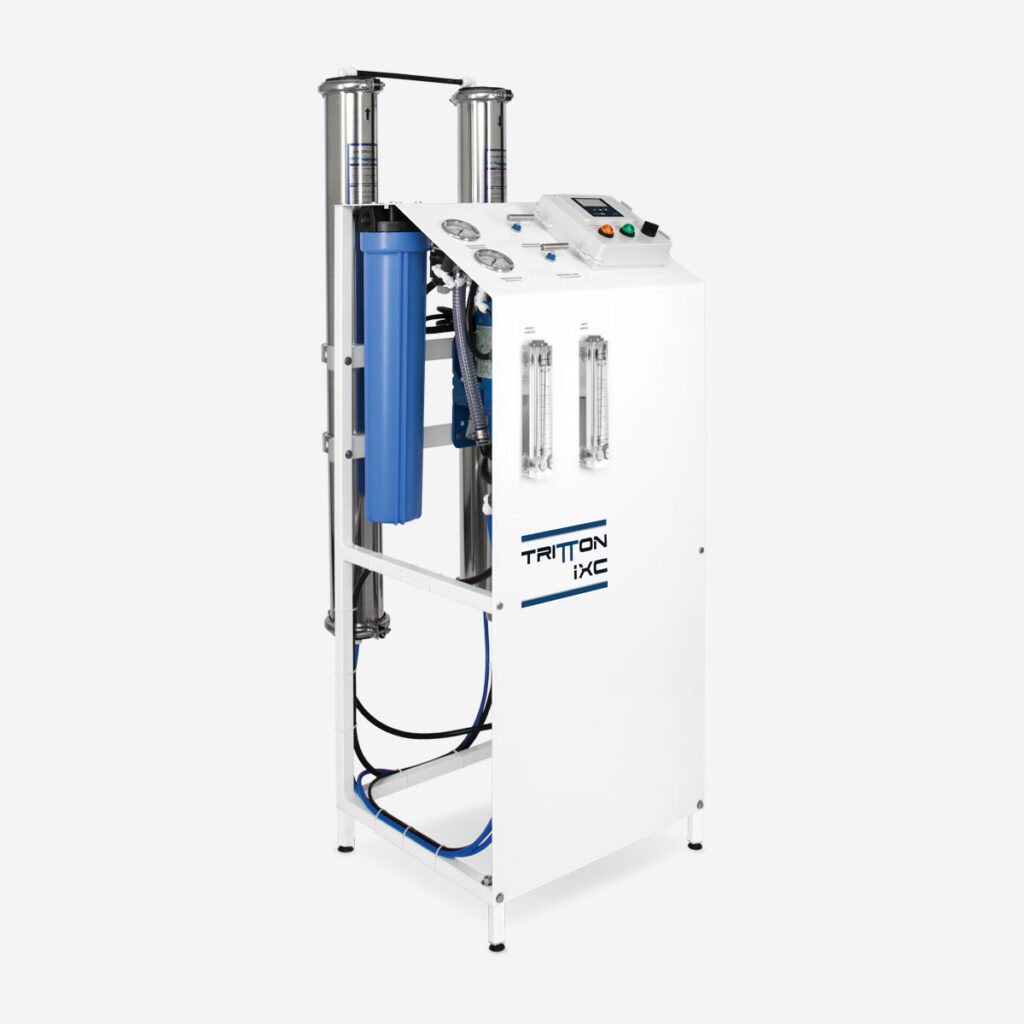

Tritton IXC™ – ROS-IXC-1SS-T

In Stock

Tritton IXC^™ – ROS-IXC-1SS-T

Tritton IXC^™ Reverse Osmosis Systems

Commercial RO Systems

The Tritton IXC^™ ROS-IXC-1SS-T Commercial Reverse Osmosis System is engineered to deliver dependable, high-quality water treatment for demanding commercial applications. Its compact vertical configuration combines a high-rejection 4″ x 40″ reverse osmosis membrane with durable commercial-grade components to provide production capacities ranging from approximately 2,100 to 2,400 gallons per day while maintaining a space-efficient footprint.

The Tritton IXC^™ ROS-IXC-1SS-T Commercial Reverse Osmosis System features a multistage pump, sediment prefiltration, high-pressure quick connectors, glycerine-filled pressure gauges, and a stainless steel waste and recirculation valve for reliable day-to-day operation. Its digital control display provides convenient system monitoring with information including product-water TDS, low-pressure status, membrane flush activation, main pump operation, and full-tank indication.

The Tritton IXC^™ ROS-IXC-1SS-T Commercial Reverse Osmosis System is designed with simple operation and ease of maintenance in mind, arriving ready for installation without the need for technician programming. With a 50–60% recovery range, product flow of approximately 1.45–1.6 gpm, and feed flow of 5 gpm, the system is well suited for drinking water, food service, hotel, restaurant, manufacturing, and other commercial applications requiring consistent reverse osmosis water production.

Applications

✔ Commercial Reverse Osmosis Water Treatment
✔ High-Quality Product Water Production
✔ Commercial Process Water Applications

Recommended Use

✔ Drinking Water Systems
✔ Food Service & Restaurant Operations
✔ Hospitality Water Treatment
✔ Commercial & Manufacturing Applications

Industries

✔ Restaurants & Food Service
✔ Hospitality (Hotels, Resorts, Lodging)
✔ Commercial Water Treatment
✔ Manufacturing

Specifications

Model: ROS-IXC-1SS-T

Production: 2,100–2,400 GPD

RO Membrane: 1 × 4″ × 40″

Product Flow: 1.45–1.6 GPM

Feed Flow: 5 GPM

Recovery Range: 50–60%

High Pressure Pump Capacity: Maximum 15 GPM

Inlet Connection: 3/4″

Product Outlet Connection: 1/2″

Waste Outlet Connection: 1/2″

System Dimensions: 20″ W × 28″ D × 60″ H

Electrical Power Supply: 220V

Description

The Tritton IXC^™ ROS-IXC-1SS-T Commercial Reverse Osmosis System provides dependable high-rejection reverse osmosis treatment with production capacities ranging from approximately 2,100 to 2,400 gallons per day. Its compact vertical design utilizes a single 4″ x 40″ membrane and commercial-grade components to deliver reliable water production while minimizing installation footprint.

Designed for drinking water, food service, hospitality, restaurant, manufacturing, and commercial applications, the ROS-IXC-1SS-T combines simple operation with convenient digital system monitoring and easy maintenance. The system arrives ready for installation with preconfigured controls and provides a 50–60% recovery range with product flow of approximately 1.45–1.6 gpm.

Features & Components

Membrane Housing: Stainless Steel 304 or optional FRP membrane housing.

RO Membrane: One 4″ × 40″ Hydron high-rejection reverse osmosis membrane.

Pump: Multistage pump designed for dependable commercial operation.

Solenoid Valve: Normally closed 120V brass solenoid valve.

Flow Meter: Panel-mounted flow meter for convenient system monitoring.

Pressure Gauges: 0–100 PSI and 0–300 PSI glycerine-filled pressure gauges.

Waste & Recirculation Valve: Stainless Steel 316 needle valve for system adjustment.

Filter Housing: 20″ filter housing for sediment prefiltration.

Pre-Filtration: 20″ 5-micron polyspun sediment cartridge.

Frame: Standard steel frame with a durable powder-coated finish.

Controller: Aquatrol EC-100 controller with time delay, level switch, Off/Auto operation, optional fast flush, and TDS monitoring of product-water quality.

Safety & Controls: Includes a two-position Off/Auto selector switch, electrical contactor, thermal relay, low-pressure switch, and green LED power indicator.
